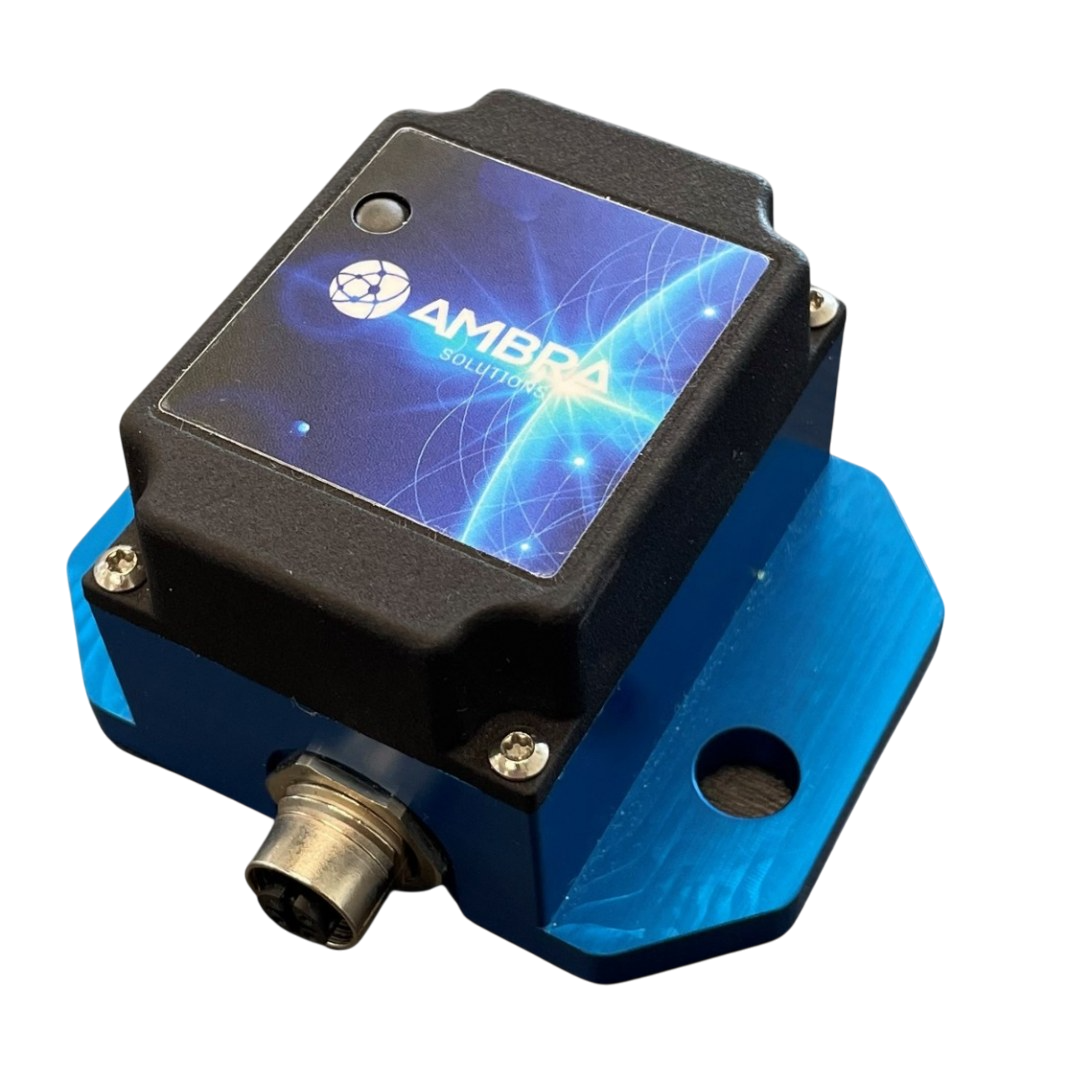

Light modem iPS
A compact and versatile LTE IoT device, the Light Modem enables real-time tracking, control, and diagnostics of your equipment, while seamlessly integrating with the iPS system for full field visibility.
Compact IoT control for mobile industrial equipment.
E02631
Solutions Ambra’s iPS Light Modem is part of the LTE-based tracking and control technology known as iPS. The Light Modem is a CAT-M1 compatible IoT device capable of monitoring vehicles and equipment deployed in the field.
It can monitor and interact via CAN bus, RS485, 4-20mA, or GPIOs through the LTE connection. Thanks to its intuitive mobile app, it's easy to configure and use.
The Light Modem also interacts with the iPS system by reporting BLE packets from GeoBeacons and sending information to the iPS core, allowing you to track the location and condition of your equipment.
Features and benefits
SPECIFICATIONS
- Operating Temperature : -40°C to 85°C
- Storage Temperature : -40°C à 85°C
- Ingress Protection : IP54
- Case material : Aluminium/Plastic

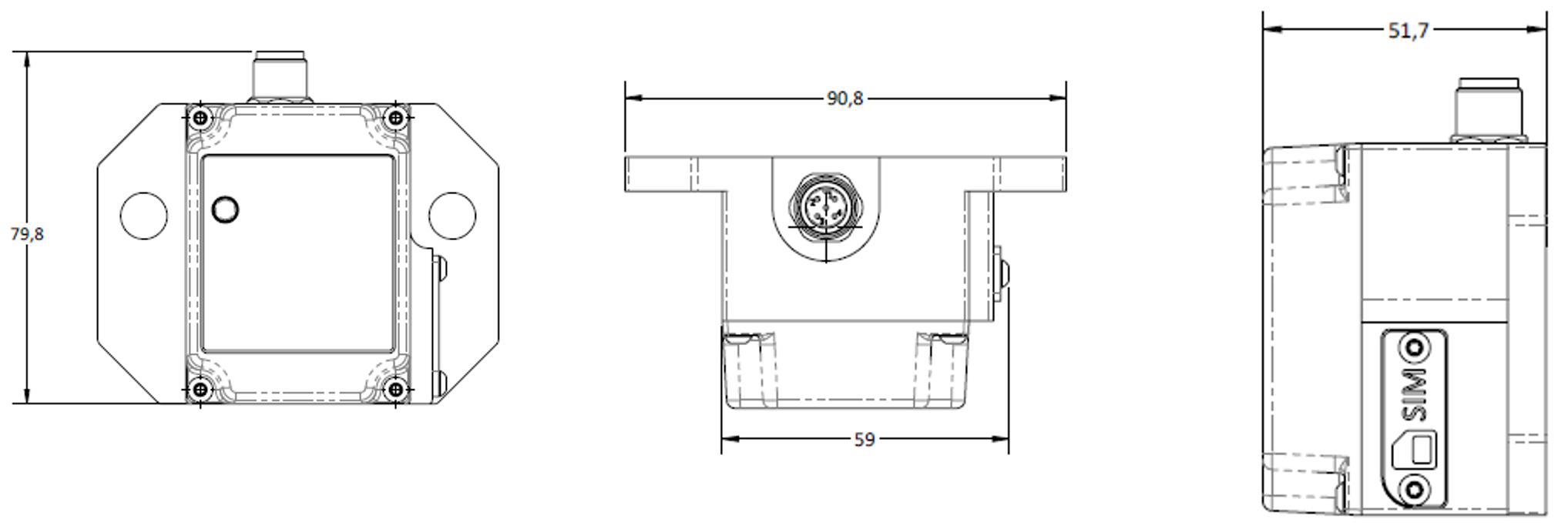

- Dimensions (mm) : 51,7 x 79,8 x 90,8
- Weight : 1 lb / 0.45kg
- Connector type : M12-5 / 43-01207
- Mating connector : M12-5 / TE 1838274-3
- Pinout :
- Ignition
- Vcc
- CANLO/RS485 B/GPIO 1/4-20mA IN
- Gnd
- CANHI/RS485 A/GPIO 0/4-20mA OUT
- Operating Voltage : 9VDC à 57VDC
- Interface (*Can’t be use at the same time) :
- CAN: 250kbps or 500kbps
- RS485: Up to 115200 bauds
- 4-20mA reader
- 2x GPIOs: 12bits ADC input/Open collector output
- Ignition pin for graceful shutdown
- Power Consumption : 2W typical
- Supported bands : LTE CATM1: B1, B2, B3, B4, B5, B8, B12, B13, B18, B19, B20, B25, B26, B28
