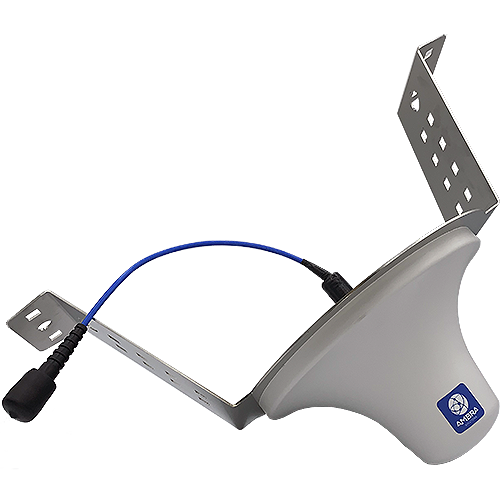

Universal Antenna
Multiband omnidirectional antenna designed for underground environments such as mines and tunnels, offering reliable performance, easy installation, and optimal protection against condensation.
Reliable and durable coverage for underground environments.
M00479
The Multiband Omnidirectional Antenna is certified for high performance. Its indoor coverage meets the propagation needs of underground galleries and tunnels.
Its mount is designed to facilitate installation in underground mines and is uniquely assembled with the antenna to ensure waterproofing and moisture drainage in case of condensation.
Features and benefits
SPECIFICATIONS
- Ouverture du faisceau – Horizontal : Omni-directional
- Polarization : Vertical
- Impedance : 50
- 3rd order PIM, 2 x 20W: -153 dBc
- Max Input Power : 50 Watts (2W typical)
- Enclosure materials: UV-protected ABS
- Support : Aluminium or Stainless Steel

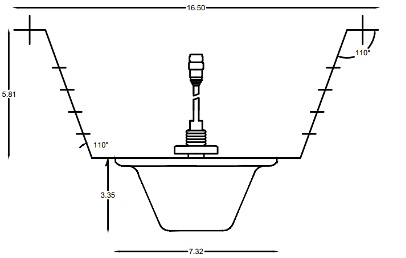

- Dimensions (in) : 16.5 x 9.5 x 10.5
- Weight : Aluminium 2.5 lb / Stainless Steel 3.5 lb
- Interface : 4.3-10
- Pigtail : Cable à faible indice PIM pour plenum
- Operating Temperature : -40°C to 60 °C (-40 °F to 140 °F)
- Relative Humidity : Up to 100%
