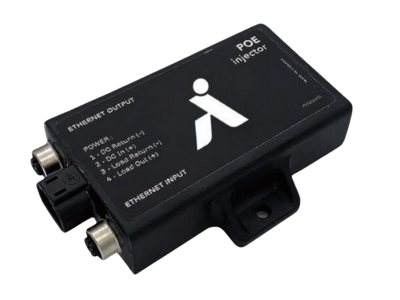

Sealed Adaptive POE
Reliably powers Ethernet equipment, including non-PoE compatible devices, thanks to a rugged and waterproof design—ideal for demanding industrial and automotive environments.
Ruggedness, PoE compatibility, and simplified integration.
E00283
This module powers passive PoE Ethernet equipment and converts non-PoE devices into 802.3at/af-compliant equipment.
Its monolithic design ensures reliability and ruggedness capable of withstanding the harshest automotive and industrial conditions. The DC connector allows for easy and quick integration into the wiring harness.
Essential devices can be powered using multiple power inputs simultaneously.
SPECIFICATIONS
- Circuit Topology : Daisy chained with load
- Ethernet ports : 2 ports (switch and device port)
- Auxiliary port : 1x DC IN / DC OUT*
- Enclosure Dimensions : 4.6” x 3.9” x 1.1” (117mm x 100mm x 28mm)
- Connectors : 4 positions Deutsch DT(c) serie, M12 X-coded
- Enclosure fixations : 2 x 3/16" holes
- Operating : -40°C to +85°C
- Storage : -40°C to +85°C
- Waterproof protection : Complete, IP67
Power input :
- DC input : 9 to 60 VDC
- AC input* (External Adapter) : 90 to 240 VAC*
- Default PoE input*t : Passive 24 to 60 VDC on any pair*
- PoE+ Input* : IEEE 802.3af and 802.3at compatible*
- Protection : Overvoltage, transients, load dump
(*Available as an option)
Power output :
- Default PoE type : Passive, over data Phantom Power
- Default powered pair (M12) : Factory selected pins +7,8 and -5,6
- Output voltage* : 12*, 24 or 48* VDC
- Auxiliary output* : Selected output voltage*
- Output power budget : Up to 40W limited by input source
- Protection : Current limit, over temperature, short
(* Available as an option )
